35mm 12V DC Geared Stepper Motor 7.5 Degree Step Angle 35BYJ46 With 1:85: Gear Box

Diameter 35mm 7.5 degree step angle 35BYJ46 permanent magnet stepper motor with 1:85: gear box

Description:

The 35BYJ46 is a permanent magnet stepping motor with a gearbox with a diameter of 35mm.
The step angle of a single motor is 3.75°/step.
It has a top gear ratio of 42.5, so the step angle is 3.75°/42.5.
This motor is suitable for 12V DC drive.
A conventional PM unipolar stepper motor driver can drive this motor.
If you are interested in this product, please feel free to contact us.

Motor Parameters:

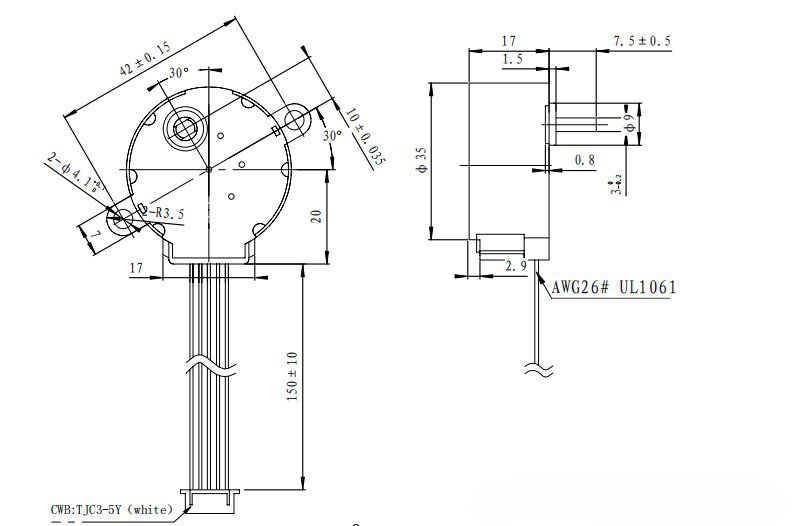

Design drawing:

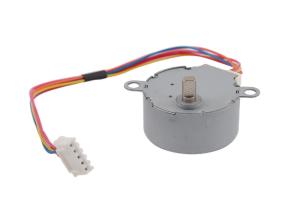

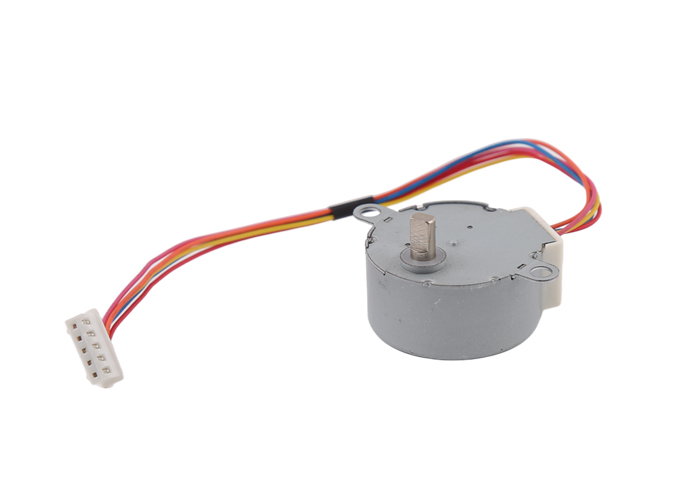

Product display:

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
