High precision 35mm diameter permanent geared reducer magnet stepper motor
Description:
This is a 35mm permanent magnet motor with gearbox.
The output torque and speed of this motor are related to the gear ratio of the motor.
The gear ratio of this motor is 30:1.
This motor is commonly used in medical equipment and electronic locks.
Customers can freely customize the motor's output shaft, lead type and connector type.
Lead times may be longer and additional custom charges may apply if the motor is custom made.
Motor Parameters:
| Motor type | PM motor + gearbox |
| Model No. | SM35-048L-30G |
| Diameter | 35mm |
| No.of Phase | 2 phases |
| Step angle | 7.5°/30 |
| Gear ratio | 1:30 |
| Resistance | 30±7%Ω(25℃) |
| Current per phase | 400mA/phase |

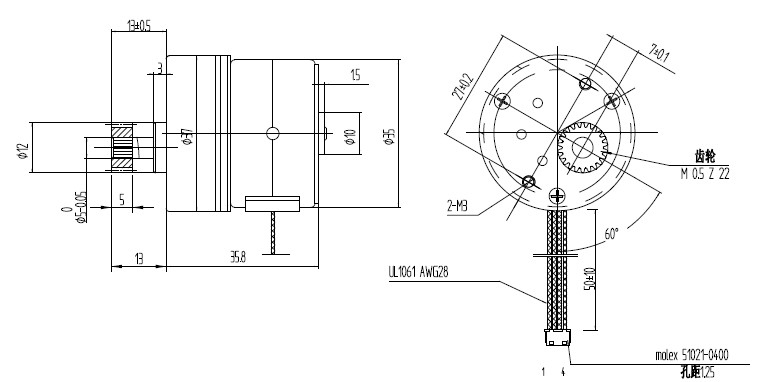

Design drawing:

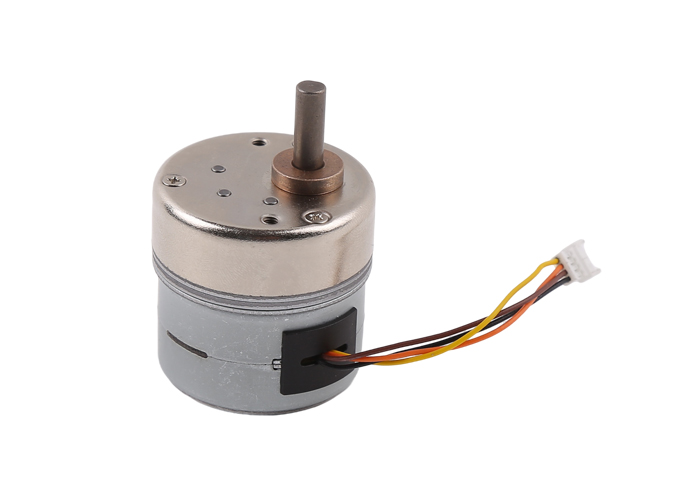

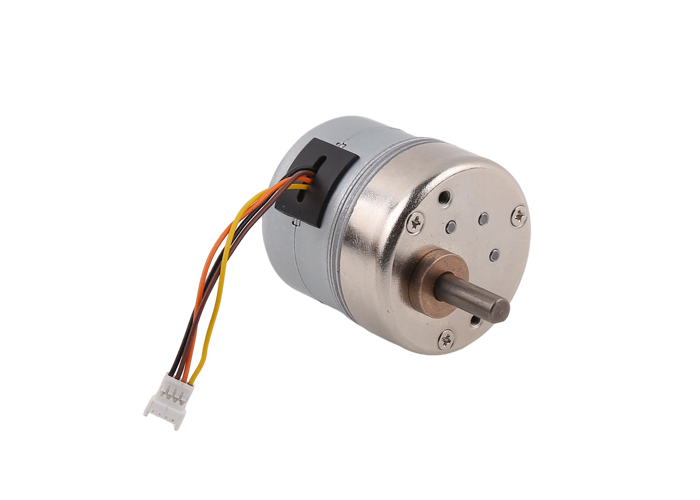

Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motors can be precisely controlled even without a closed-loop encoder/feedback system and without brushes. Therefore, there are no electromagnetic interference and spark problems. In some cases, they can replace DC brushless/brushless motors.
The stepper motor is easy to control through the driver, which has established its important position in the field of precision control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
