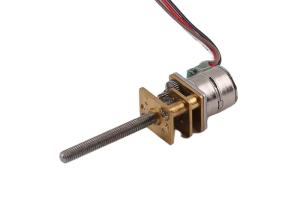

10mm mini gear box stepper motor dia10 micro geared stepper motor with lead screw
VSM10-816G is the use of diameter 10MM micro stepper motor and 10*12 precision metal reduction gearbox combination, the reduction ratio can be customized according to customer needs.
Motor basic step angle is 18 degrees, that is, 20 steps per turn, plus the deceleration box deceleration effect, the final motor rotation angle resolution can reach 0.05~6 degrees, can be used in many requirements
Precise control of the rotating position of the field.
The selectable ratios are
1:2 1:5 1:10 1:15 1:20 1:30 1:36 1:50 1:63 1:67 1:89 1:100 1:110 1:150 1:172 1:210 1: 250 1:275 1:298 1:380 1:420 1:500 1:600 1:1000, the customer can according to different use torque speed requirements to match the speed ratio, at the same time
Given the proper driving frequency of the stepper motor can reach the determination of the speed and torque.
This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the cir cutular axis, D axis, and the wire rod!
SM10-816G gearbox stepper main parameters:
| PRODUCT NAME | 10mm geared stepper motor |
| MODEL | SM10-816G |
| RESISTENCE | 40Ω±7% (optional 20 15 10 ohm) |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| GEAR RATIO | 2~1000 |
| OEM & ODM SERVICE | AVAILABLE |
| EFFICIENCY | 10~20% |
| SPEED RANGE | Motor(0~3000RPM) Out shaft(0~150rpm) |

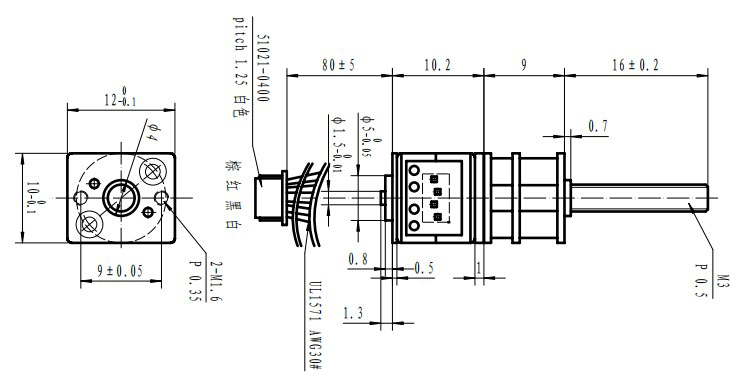

SM10-816 gear stepper motor out drawing:

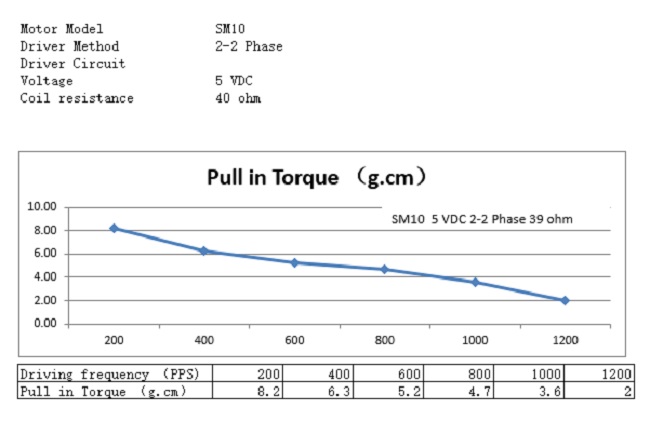

SM10-816gear stepper torque curve:
Since there are many speed options, the output torque can be the torque * speed ratio * efficiency of the motor, and the specific situation will generally be determined after testing the actual sample. The following is the torque curve of the SM10 stepper motor for reference.

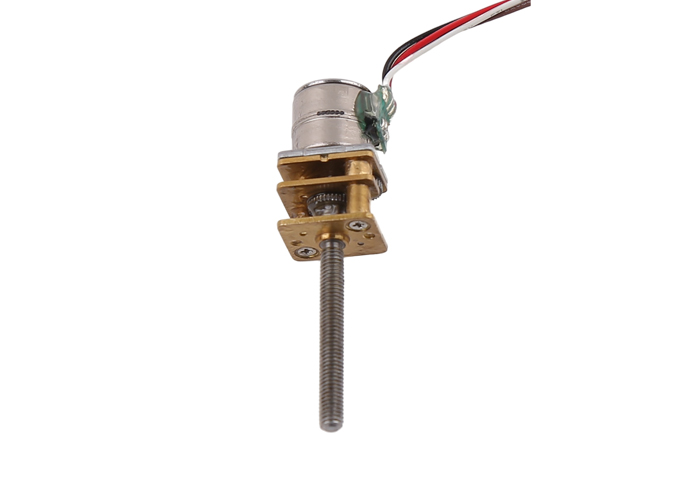

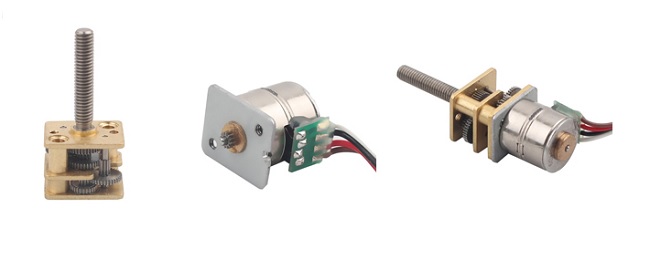

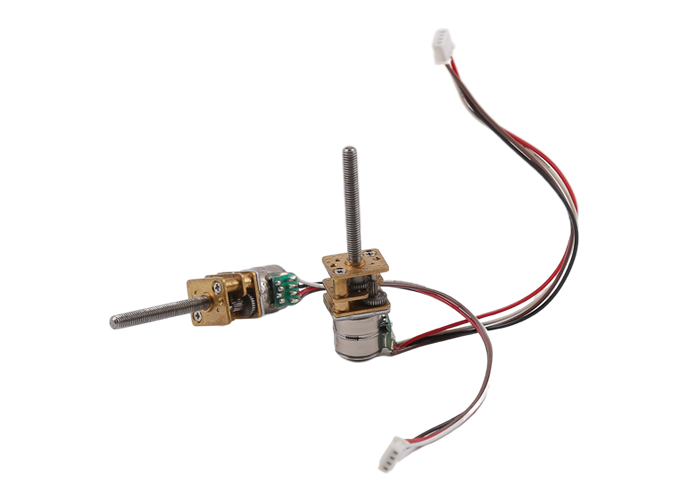

SM10-816 gear stepper motor display:
